3D printing suits a lot of shop tooling, and printed cut-tape feeders and strip holders can work for occasional builds. If you're deciding between printing SMD feeders and buying a molded SMT feeder, here is what the choice comes down to, using the SMT Caddy MTI as the molded example.

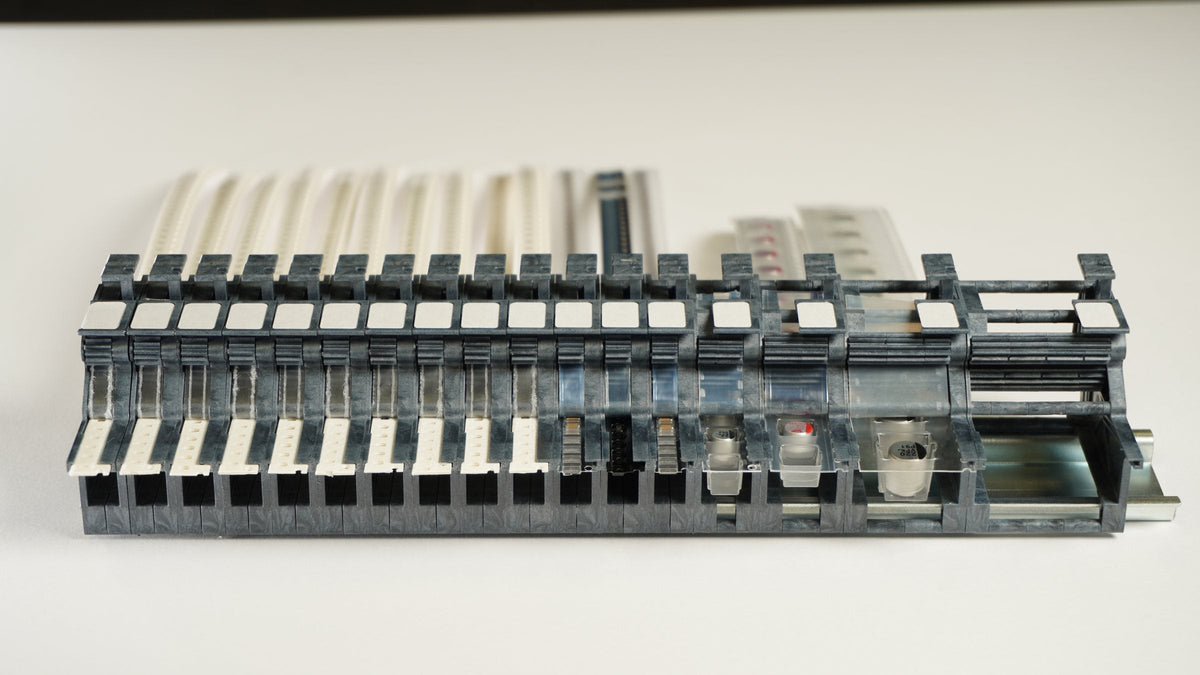

The design target: a feeder only 2 mm wider than its tape
The MTI is built for packing density. Each feeder is 2 mm wider than the tape it carries, so twenty 8 mm feeders fit in 200 mm of DIN rail. A narrow bank keeps every pick point within a short reach of the board, and it lets you keep one feeder per part type instead of swapping strips.
That 2 mm budget is split between two side walls. A thin wall alone is not enough; it has to be a thin, stiff wall, or it flexes when you press the plunger and stops guiding the tape. MTI walls are as thin as 0.6 mm, molded in liquid crystal polymer (LCP) with 30% carbon fiber: 31.8 GPa tensile modulus.
Static: conductive or dissipative, not an insulator
A feeder sits next to static-sensitive parts, and tape sliding over an insulating plastic can charge it by friction. So the material must be conductive or dissipative. That's where printing gets hard: the stiffest resin we found (11 GPa) is an insulator, and the ESD resins we found top out around 4 to 5 GPa, with typical ones about 1.9 GPa. The MTI has both properties: 31.8 GPa, and conductive, with a measured surface resistance under 100 Ω. Grounded through the DIN rail, it can't hold a charge.
Gear accuracy
The MTI advances the tape and peels the cover film with a small gear train. Molded tooth accuracy is under 0.01 mm, tooth to tooth and gear to gear, and every feeder in a bank of 20 or 50 behaves the same way.
Side by side
| MTI (molded LCP, 30% carbon fiber) | SLA resin | FDM filament | |
|---|---|---|---|
| Stiffness (tensile modulus) | 31.8 GPa | Stiffest found: 11 GPa (Formlabs Rigid 10K, insulating). Stiffest ESD found: 4 to 5 GPa (3DResyns R290D90 ESD). Typical ESD: about 1.9 GPa | Typical: about 2.5 GPa (ABS, nylon) |
| Conductive or dissipative? | Yes, conductive: under 100 Ω measured | ESD resins: yes, dissipative, 105 to 108 Ω/sq. Standard resins: no, insulating (over 2×1014 Ω/sq) | Carbon-filled ESD grades: yes, dissipative, 104 to 107 Ω/sq |
| Tooth accuracy | Under 0.01 mm | No published figure found | No published figure found |
Conductive class per ANSI/ESD S541: below 104 Ω. Tensile figures are typical published values. We list only numbers we can source.
The result: printed versions end up wider, coarser or less durable, which breaks the 2 mm budget.
Cost
Specs aside, there's cost. One MTI is a dozen or more parts. Material, printer wear, failed prints, setup, finishing and assembly would arguably exceed its price, which runs from $35 for one to $22 each at 50 or more.
When printing still makes sense
If you need a one-off holder for an unusual tape, or a fixture shaped around your bench, print it. If you want a dense, consistent, static-safe bank of SMD tape feeders that you can widen from 8 mm to 12, 16, 24 or 32 mm with low-cost extension kits, a molded feeder is the faster route.
